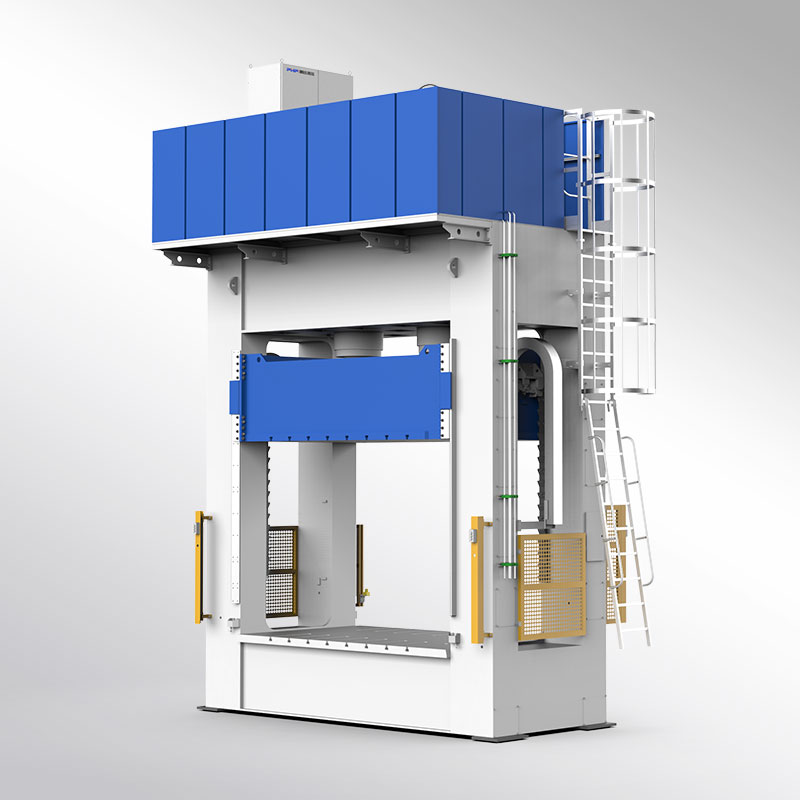

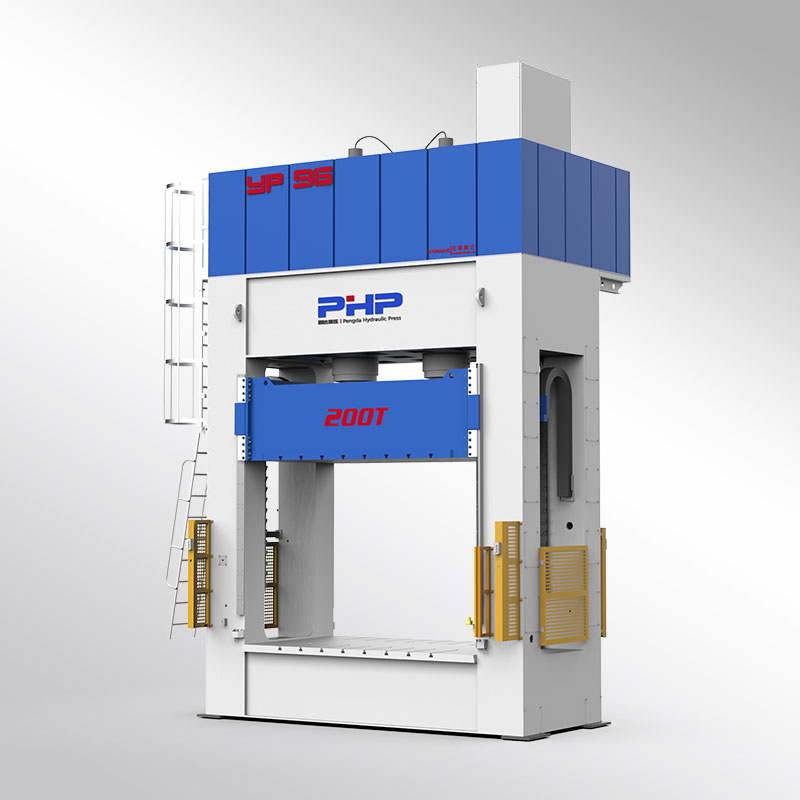

Servo Auto Trim Hydraulic Press

Industry Insights: The Servo Auto Trim Hydraulic Press

1. From Metal to Non-Metal: The Technical Evolution of Servo Auto Trim Hydraulic Presses in Composite Component Finishing

Traditionally, auto trim hydraulic presses were primarily used for metal stamping. However, with the surge in demand for lightweight composite materials (like carbon fiber and SMC) in the new energy vehicle and aerospace sectors, trimming technology faces new challenges. This article explores how servo auto trim technology has successfully transitioned from metal to non-metallic composite processing, analyzing its unique advantages in achieving complex contours, dust-free cutting, and maintaining material structural integrity.

Key Parameter Comparison:

Connecting with PHP: Founded in 2004, PHP(Pengda Hydraulic Press) has always focused on the R&D of non-metallic hydraulic presses. While our core products are Servo Composite Hydraulic Presses (for molding SMC, carbon fiber, etc.), we understand that a complete solution includes both forming and precision finishing. PHP's deep expertise in servo control and composites allows us to provide integrated solutions for composite components (like new energy vehicle battery box covers) from hot pressing to automatic trimming and punching, ensuring the final product's high precision and quality.

2. The Servo Control Core: How the Auto Trim Hydraulic Press Achieves a Dual Breakthrough in "Energy Saving" and "Precision"

The servo system is the "brain" of the modern auto trim hydraulic press. This article provides an in-depth analysis of how servo drive technology achieves energy savings of up to 50%-70% through the "on-demand energy supply" principle. It also elaborates on how its closed-loop control mechanism enables millisecond-level response to slide position, speed, and pressure, thereby ensuring ultimate precision during the trimming process, which directly determines the yield rate when processing high-value products.

Key Technical Parameters:

• Energy Efficiency: Saves 30%-70% compared to traditional hydraulic presses.
• Slide Repeatability: ±0.01 mm.
• Pressure Control Accuracy: < 1% of the set pressure.
• Slide Speed Adjustment Range: 0-20 mm/s (programmable), enabling "soft touch."
• System Response Time: < 100 ms, ensuring rapid start-stop and reversal.

Connecting with PHP: The core competency of PHP(Pengda Hydraulic Press) lies precisely in the continuous innovation of servo hydraulic technology. We are committed to designing and developing energy-saving hydraulic presses through technological innovation. Our servo control systems are not only applied to molding presses but their high precision and high response characteristics can also be perfectly integrated into automatic trimming units, providing global customers with advanced equipment that meets green industry principles while solving industry precision challenges.

3. The Cornerstone of the Smart Factory: Seamless Integration Strategies for Servo Auto Trim Hydraulic Presses and Automated Production Lines

In the Industry 4.0 era, standalone automation is no longer sufficient. This article discusses how the servo auto trim hydraulic press acts as a key node in a smart factory, deeply integrating with robots, vision systems, conveyors, and MES systems. Through case studies, it demonstrates how to achieve a fully automated workflow from material identification, automatic picking, precise positioning, dynamic compensation, to finished product inspection, ultimately realizing data-driven intelligent production.

Key Automation Integration Parameters:

• Communication Protocols: Supports OPC-UA, Modbus-TCP, Profinet, and other industrial Ethernet protocols.
• Vision System Positioning Accuracy: ±0.05 mm, for workpiece position compensation.
• Robot Repeatability: ±0.1 mm, ensuring stable loading and unloading.
• Production Cycle Time: Depending on part complexity, can reach 8-15 seconds/part.
• Data Traceability: Can record processing parameters (pressure, position, time) for each part, enabling quality traceability.

Connecting with PHP: PHP(Pengda Hydraulic Press) not only provides standalone machines but is also dedicated to offering fully automated production lines and integrated services. Our Servo Interior Parts Hydraulic Presses have widely integrated automated molding, compounding, punching, and trimming processes in the production of automotive interior parts (such as headliners and carpets). This capability to deeply integrate servo presses with automation technology allows us to build efficient, stable, and reliable intelligent production lines for our customers, earning strong recognition.

4. Revolution in Automotive Interior Parts Production: Applications of Servo Auto Trim Hydraulic Presses in Trimming Door Panels, Dashboards, and Headliners

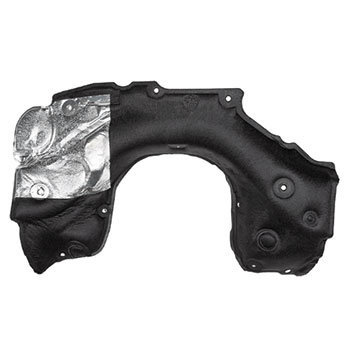

Automotive interior parts (like door panels, dashboards, and headliners) are typically made of multi-layer composites (fabric, foam, substrate), and their trimming process demands extremely high standards. This article focuses on the application of servo auto trim hydraulic presses in this specific field, analyzing how they achieve "one-shot" trimming of complex 3D contours and materials of varying thicknesses through programmed slide curves and specialized tooling, while ensuring smooth, burr-free cuts and effectively handling multi-material waste.

Interior Parts Trimming Process Parameters:

• Applicable Materials: Non-woven fabrics, PU leather, PVC, ABS/PP substrates, glass fiber, etc.
• Trimming Types: Contour trimming, hole punching, edge chamfering.
• Typical Tonnage: 100 - 500 tons.
• Working Table Size: 1500 x 1000 mm to 3000 x 2000 mm.
• Waste Handling: Integrated vacuum waste removal system and automatic waste bin switching device.

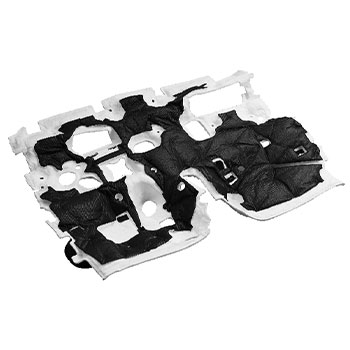

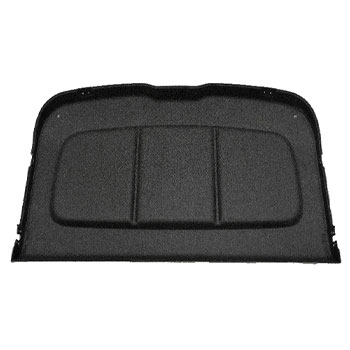

Connecting with PHP: This is precisely the core application scenario for PHP(Pengda Hydraulic Press)'s Servo Interior Parts Hydraulic Presses. We have a deep understanding of the pain points in automotive interior parts production, such as overhead liners, carpets, luggage compartments. Our equipment is designed with these process requirements in mind from the outset, ensuring efficient and stable automated trimming production in limited space through space optimization and operational stability designs, providing comprehensive industry solutions for automotive interior suppliers.

5. ROI Analysis: Why the Servo Auto Trim Hydraulic Press is an Inevitable Choice for High-Value Manufacturing Enterprises

Purchasing new equipment is a major investment. From a Return on Investment (ROI) perspective, this article uses quantitative analysis to demonstrate how the servo auto trim hydraulic press brings significant economic benefits to manufacturing enterprises through three main pathways: "energy saving and cost reduction," "quality improvement and efficiency enhancement," and "labor reduction." The article provides specific cost-saving calculation models and efficiency improvement case studies to help decision-makers make an informed choice.

Connecting with PHP: PHP(Pengda Hydraulic Press) always prioritizes customer perspectives. We understand that customers are not just buying equipment, but the ability to create value. For nearly two decades, we have maintained our specialization philosophy, focusing on manufacturing stable and reliable non-metallic presses. Our equipment is known for its high reliability and long service life, minimizing downtime and ensuring our customers' continuous production. Choosing PHP means choosing a long-term partner that can create value steadily and grow with you, achieving true mutual growth.
