RTM Molding Press Boosts Manufacturing Efficiency

Unlocking Greater Productivity with Advanced RTM Press Technology

The pursuit of manufacturing excellence demands continuous innovation in process technology, and the Resin Transfer Molding (RTM) press stands as a pivotal piece of equipment in this journey. Moving beyond traditional open molding methods or slower composite manufacturing techniques, the modern RTM molding press offers a closed-system approach that significantly enhances production rates, improves part quality, and reduces material waste and environmental impact. This article delves deep into the core advantages of integrating an RTM press into your manufacturing workflow, providing a detailed analysis of its operational principles, key benefits, and the critical factors to consider for a successful implementation. We will explore how this technology not only boosts efficiency but also opens up new possibilities for creating high-performance, complex composite parts that were previously challenging or costly to produce. By understanding the full capabilities of the RTM process, manufacturers can make informed decisions to streamline their operations, reduce their overall cost per part, and gain a competitive edge in the market.

How an RTM Press Transforms Composite Part Production

The fundamental operation of an RTM molding press involves injecting a liquid resin into a closed mold containing a dry fiber preform. This seemingly simple process is governed by precise control of numerous parameters, which together determine the quality and consistency of the final part. The transformation from raw materials to a finished, high-strength component is a testament to the engineering sophistication of the RTM press system.

The Step-by-Step RTM Process Cycle

A typical RTM cycle can be broken down into several distinct stages, each critical to the success of the operation. Understanding this cycle is essential for appreciating how the press boosts efficiency.

• Mold Preparation and Preform Placement: The process begins with the preparation of the two halves of the matched metal mold. A release agent is applied to ensure easy demolding of the finished part. The dry fiber reinforcement, which can be in the form of woven fabrics, stitched mats, or braided preforms, is precisely cut and placed into the bottom half of the mold cavity. This preform defines the structural properties and shape of the final part.
• Mold Closing and Clamping: The top half of the mold is then lowered onto the bottom half, and the powerful hydraulic or electric system of the RTM press applies significant clamping force to seal the mold. This force is crucial to withstand the internal pressure generated during resin injection without causing the mold to separate or flash to occur. The precision of the clamping system ensures that the part thickness is consistent and repeatable across thousands of cycles.
• Resin Injection and Cure: A pre-mixed resin system, often a thermoset polymer like epoxy, vinyl ester, or polyester, is degassed to remove entrapped air and then injected into the sealed mold under controlled pressure and flow rates. The resin flows through the fiber preform, thoroughly wetting out the fibers and displacing the air through strategically placed vents. Once the mold is filled, the part is held under temperature-controlled conditions to cure, a process where the resin undergoes a chemical reaction to become a solid, rigid plastic matrix.
• Demolding and Post-Processing: After the cure cycle is complete, the clamping force is released, the mold opens, and the finished part is removed. Depending on the application, the part may undergo minor post-processing, such as trimming excess material or drilling holes, but it is often a near-net-shape product, significantly reducing secondary labor compared to other methods.

Key System Components for Optimal Performance

The efficiency of the entire RTM process is heavily dependent on the performance and integration of its core components. A modern RTM press is more than just a clamping device; it is an integrated production cell.

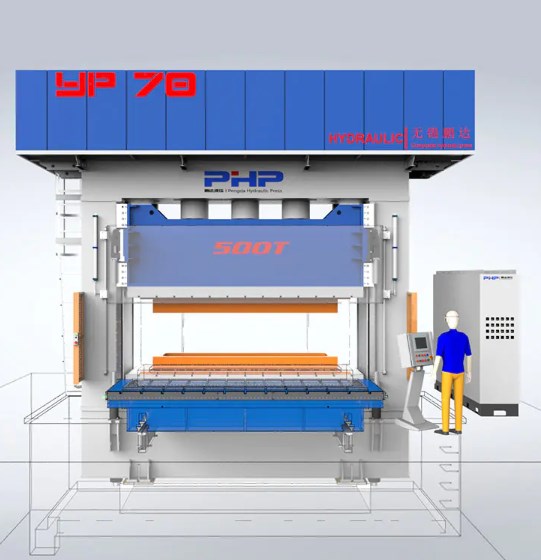

• The Press Frame and Clamping Unit: This is the backbone of the system, providing the structural integrity and force required to keep the mold closed. Modern presses offer programmable and highly repeatable clamping forces.
• Injection System: This includes the resin and catalyst meters, mixers, and injection pumps. Precision in metering and mixing is vital for achieving consistent resin chemistry and, consequently, consistent mechanical properties in the final part.
• Mold Temperature Control Unit (TCU): The TCU circulates a thermal fluid through channels in the mold to heat it to the precise temperature required for optimal resin flow and cure kinetics. Accurate temperature control is non-negotiable for achieving short cycle times and high-quality parts.
• Programmable Logic Controller (PLC): The PLC is the brain of the operation, automating the entire cycle from mold closing and clamping to injection, cure, and demolding. It stores recipes for different parts, ensuring repeatability and allowing for data logging for quality control purposes.

Critical Factors for Selecting the Right RTM Equipment

Choosing an RTM molding press is a significant capital investment, and the decision must be based on a thorough evaluation of your specific production needs. A press that is perfectly suited for one application may be inadequate for another. Therefore, a detailed assessment of technical specifications, operational requirements, and long-term production goals is paramount. For manufacturers looking to optimize their process, understanding the nuances of low pressure RTM machine specifications is a fundamental starting point. Low-pressure systems offer distinct advantages, including reduced tooling costs, the ability to use less robust molds, and lower energy consumption, making them ideal for large parts like wind turbine blades or bathtubs where extremely high injection pressures are not required.

Analyzing Clamping Force and Platen Size

The clamping force, measured in tons, and the platen size, which defines the maximum mold area, are the two most basic yet critical specifications. The required clamping force is determined by the projected area of the part (including the runner system) and the maximum injection pressure expected inside the mold cavity. Insufficient clamping force will lead to mold deflection and flash, creating waste and requiring post-processing labor. The table below provides a general comparison of how part size correlates with typical clamping force requirements.

Beyond the force, the platen size must accommodate the physical dimensions of the mold, including any ancillary fixtures like hydraulic core pullers or slides. It is also crucial to consider the daylight opening (the maximum mold height the press can accept) and the press stroke to ensure compatibility with your tooling.

Evaluating Control Systems and Automation Integration

The level of sophistication in the press's control system directly impacts ease of use, repeatability, and data integrity. A modern PLC-based system with a touchscreen HMI (Human-Machine Interface) allows operators to input and store hundreds of part recipes. Key parameters such as injection pressure, flow rate, resin temperature, and mold temperature should be monitored and controlled in a closed-loop fashion. For operations aiming for high-volume production, the potential for automation should be a key consideration. This includes integration with robots for preform loading and finished part unloading, as well as with upstream and downstream equipment. A robust control system is what enables a manufacturer to consistently produce high-quality parts and provides the traceability data required by many advanced industries.

Enhancing Part Quality and Achieving Cost-Effectiveness

The primary driver for adopting RTM technology is the significant improvement in part quality and the associated economic benefits. Unlike open molding processes, RTM produces parts with two finished, smooth surfaces (A-side and B-side), which is highly desirable for aesthetic applications. The closed-mold process also results in much more consistent fiber-to-resin ratios and superior mechanical properties because the fiber architecture is not disturbed during the resin application phase. When evaluating the overall value proposition, it is essential to conduct a cost benefit analysis of RTM vs hand lay up. While the initial investment in an RTM press and matched metal molds is higher than the tooling for hand lay-up, the long-term savings are substantial and multifaceted.

Superior Mechanical Properties and Surface Finish

The quality advantages of RTM are undeniable. The process allows for the use of high-performance continuous fiber reinforcements, which are laid down in a controlled manner to optimize strength and stiffness in specific directions. The consolidation under pressure and heat results in a composite with very low void content (typically less than 1%), which directly translates to higher interlaminar shear strength and fatigue resistance. Furthermore, the surface that replicates the mold surface is of exceptional quality, often achieving a Class A finish straight out of the mold, which eliminates or drastically reduces the need for sanding and painting preparation. This is a stark contrast to hand lay-up, where the open side of the part is rough and requires significant labor to achieve an acceptable surface.

Reducing Operational Costs and Environmental Impact

The economic benefits of RTM extend far beyond labor savings. The closed-mold nature of the process contains styrene emissions (for polyester and vinyl ester resins) and VOCs (Volatile Organic Compounds) much more effectively than open molding, helping manufacturers meet stringent environmental regulations and creating a safer workplace. Material usage is also more efficient. In hand lay-up, excess resin is typical, leading to waste and heavier parts. RTM's precision injection controls the amount of resin used, resulting in a lower part weight and reduced material cost. The following list outlines the key areas of cost savings:

• Labor Cost Reduction: RTM is far less labor-intensive than hand lay-up. A single operator can often manage multiple presses, whereas hand lay-up requires skilled laborers for each part.
• Material Efficiency: Precise resin metering and a closed mold minimize waste, leading to direct savings on raw materials.
• Reduced Rework and Scrap: The high repeatability and automation of RTM lead to consistently good parts, dramatically lowering rejection rates and the cost associated with repairing defective parts.
• Lower Environmental Compliance Costs: Reduced emissions lower the burden on ventilation and air abatement systems, resulting in lower operational costs for the factory.

Optimizing the RTM Process for Complex Geometries

As the demand for lightweight, strong, and intricately shaped composite parts grows, the ability of the RTM process to accommodate complex designs becomes a major advantage. However, successfully molding parts with deep draws, undercuts, or varying thicknesses requires a sophisticated approach to both mold design and process control. For engineers tackling these challenges, finding the best RTM molding parameters for thick composites is a common and critical task. Thick sections are prone to incomplete wet-out or exothermic overheating during cure, which can lead to internal voids or matrix cracking. Optimizing parameters like injection gate location, vent placement, injection pressure, and a multi-stage cure cycle is essential to ensure the resin fully permeates the preform and cures uniformly without defects.

Strategies for Molding Intricate and Deep-Draw Parts

Producing parts with complex geometries requires careful planning to ensure the resin flows evenly and completely fills the mold cavity. A key strategy is the use of computational fluid dynamics (CFD) software to simulate the resin flow during the filling stage. This simulation helps identify potential dry spots or race-tracking (preferential flow along channels of lower resistance) before a single mold is built. Based on the simulation, engineers can optimize the number and location of injection gates and air vents. For parts with deep draws, it may be necessary to use multiple injection points to ensure the resin reaches all areas of the preform simultaneously. Additionally, the mold may incorporate features like slides or lifters to create undercuts, allowing the part to be demolded without damage.

Ensuring Uniform Cure and Minimizing Residual Stresses

In complex parts, variations in thickness can lead to differential curing rates. Thicker sections cure more slowly due to thermal mass, or they can overheat due to the exothermic nature of the resin reaction. This non-uniform curing can lock in residual stresses, leading to part warpage or dimensional inaccuracy after demolding. To counteract this, the mold temperature control system must be precisely zoned to deliver different temperatures to different areas of the mold, promoting a more uniform cure profile throughout the part. Furthermore, using a resin system with a lower peak exotherm temperature and tailoring the cure cycle with appropriate hold times and ramp rates are vital process control measures for achieving dimensional stability in complex RTM parts.

Maintaining Your RTM Press for Long-Term Reliability

To ensure that an RTM press continues to deliver high efficiency and part quality over its entire operational lifespan, a proactive and systematic maintenance regimen is non-negotiable. Unplanned downtime is one of the largest costs in manufacturing, and it is often the result of neglected maintenance. A well-maintained press not only operates more reliably but also maintains its precision, which is directly linked to the consistency of the parts it produces. A comprehensive maintenance schedule for an RTM press should be developed and adhered to rigorously, encompassing daily, weekly, monthly, and annual tasks. This schedule should be based on the manufacturer's recommendations but also tailored to the specific production volume and environmental conditions of your facility.

Essential Daily and Weekly Maintenance Checks

Many critical issues can be identified and prevented through simple daily visual inspections and routine checks. These tasks are the first line of defense against major breakdowns.

• Daily Checks: Operators should inspect for hydraulic oil leaks around cylinders, valves, and piping. Check the hydraulic oil level in the reservoir. Listen for unusual noises from pumps, motors, or the clamping mechanism. Visually inspect the heater hoses and connections on the mold temperature control unit for signs of wear or leakage.
• Weekly Checks: Clean the platens to prevent debris from affecting mold alignment or part quality. Check the condition of the hydraulic fluid for signs of contamination or degradation. Verify the calibration of pressure and temperature sensors. Inspect electrical connections for tightness and signs of overheating.

Proactive Long-Term Maintenance and Component Replacement

Beyond daily and weekly tasks, a more in-depth maintenance plan is required to address component wear and tear over time. For facilities operating multiple shifts, the question of how to increase output with a multi daylight RTM press often arises. A multi-daylight press, which features multiple mold stations between its platens, can dramatically increase output by allowing the curing of one part while another is being injected and a third is being demolded. However, this complex machinery demands an even more rigorous maintenance schedule. Key long-term maintenance activities include:

• Hydraulic System Overhaul: Periodically changing the hydraulic fluid and filters is crucial. Over time, seals and hoses in the hydraulic system will degrade and should be replaced as part of a preventative maintenance program to avoid catastrophic failure.
• Platen and Tie-Bar Inspection: The platens must be checked for flatness and the tie-bars for any signs of stretching or scoring. Misalignment can cause uneven clamping force and part thickness variations.
• Injection System Servicing: The precision meters, mixers, and pumps of the injection system must be regularly cleaned and serviced to prevent resin buildup and ensure accurate ratio control. Static mixers should be replaced as recommended.
• Control System Verification: The PLC, sensors, and safety interlocks should be periodically tested and calibrated to ensure they are functioning correctly, maintaining process repeatability and operator safety.

By investing in a disciplined maintenance culture, manufacturers can maximize the uptime, performance, and return on investment of their RTM molding press, ensuring it remains a cornerstone of efficient manufacturing for years to come.
