HP-RTM Servo Molding Press: Advancing Precision, Efficiency, and Automation in Modern Composite Manufacturing

Introduction

The modern composite manufacturing industry is experiencing unprecedented growth, driven by demands for lighter, stronger, and more durable materials across sectors such as aerospace, automotive, and renewable energy. Among the innovative technologies reshaping the industry, HP-RTM servo molding press has emerged as a critical solution for achieving high-precision and efficient composite production. This technology integrates high-pressure resin transfer molding (HP-RTM) with servo-driven systems, offering unparalleled control over the molding process.

Compared to traditional molding methods, servo-driven injection molding machines provide enhanced accuracy, energy efficiency, and faster cycle times. In an era where production efficiency and material optimization are paramount, adopting such advanced systems has become essential for manufacturers aiming to maintain a competitive edge.

Furthermore, the growing emphasis on energy-efficient injection molding and precision molding technology underscores the importance of integrating servo systems into HP-RTM processes. By leveraging intelligent control systems, these presses enable consistent product quality, reduce material waste, and enhance overall production throughput.

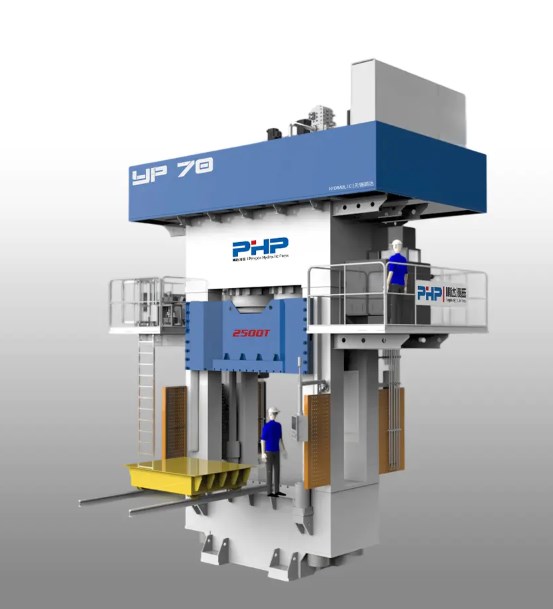

HP-RTM Servo Molding Press Technology Overview

The HP-RTM servo molding press represents a significant advancement in the field of composite material manufacturing. High-Pressure Resin Transfer Molding (HP-RTM) is a process where resin is injected under high pressure into a closed mold containing dry fiber preforms. This method enables the production of complex, high-performance composite parts with superior dimensional accuracy and structural integrity. Integrating a servo-driven injection molding machine into this process enhances precision, control, and energy efficiency.

Servo System Advantages

Unlike conventional hydraulic presses, a servo-driven system provides precise control over motion, pressure, and velocity. This precision is crucial in HP-RTM applications, where even minor deviations in injection speed or mold pressure can lead to defects, such as voids or incomplete fiber wetting. The servo system enables highly repeatable operations, ensuring consistent quality across large production volumes.

Key advantages of the servo system include:

• High-speed operation: The high-speed servo press can achieve faster mold closing and resin injection, reducing cycle times without compromising part quality.
• Energy efficiency: By dynamically adjusting motor output to the required load, the press consumes significantly less power than traditional hydraulic systems, aligning with the industry’s push for energy-efficient injection molding solutions.
• Precision control: Servo drives allow fine-tuned control of pressure and velocity profiles during injection, critical for maintaining tight tolerances in high-performance composite parts.

Integration with Intelligent Molding Systems

Modern HP-RTM servo molding presses often incorporate intelligent molding systems that provide real-time monitoring and feedback. Sensors track critical parameters such as mold temperature, resin flow rate, and pressure distribution. This data is processed by control software to adjust the process dynamically, ensuring optimal part quality and minimizing waste.

Intelligent control systems facilitate:

• Automated adjustment of injection parameters for different materials or part geometries
• Predictive maintenance, reducing downtime and low-maintenance molding press requirements
• Integration with factory-wide manufacturing execution systems (MES), enabling fully automated production workflows

Comparison with Traditional Presses

Traditional hydraulic presses rely on fixed pump flow and pressure settings, limiting responsiveness and efficiency. In contrast, the servo hydraulic press combines the benefits of hydraulic force with servo motor precision, allowing for adaptable speed, pressure, and stroke profiles. This adaptability not only improves cycle time but also reduces mechanical stress on the machine, extending service life.

Moreover, the combination of HP-RTM and servo technology supports high-precision molding technology, producing components with intricate geometries and high fiber volume fractions. This capability is particularly valuable in applications where mechanical performance and weight reduction are critical, such as automotive structural parts or aerospace components.

Process Optimization Capabilities

By leveraging plastic injection molding optimization principles, the HP-RTM servo molding press can minimize material waste, optimize resin flow, and achieve uniform fiber impregnation. The system’s high responsiveness allows engineers to fine-tune injection profiles for each mold, achieving superior part consistency and reducing scrap rates.

The servo-driven approach also facilitates automated molding press solutions, where adjustments for different product designs can be implemented quickly with minimal manual intervention. This flexibility is a key advantage in modern manufacturing, where multiple part variants may be produced on the same equipment.

Core Functions and Performance Analysis

The HP-RTM servo molding press integrates advanced servo-driven mechanics with intelligent control systems, providing a combination of speed, precision, and energy efficiency that is unmatched in traditional molding equipment.

Automated Control and Precision

At the heart of the system is a servo-driven injection mechanism, which allows precise regulation of mold closing speed, injection pressure, and holding force. This precise control is vital for maintaining consistent quality in high-pressure resin transfer molding applications. The integration of an intelligent molding system enables real-time adjustments during the process, ensuring uniform resin flow, accurate fiber wetting, and minimal defect rates.

Key precision capabilities include:

• Accurate mold positioning and clamping force
• Optimized resin injection velocity for different material viscosities
• Adaptive pressure control to reduce internal stresses and warping

High-Speed Production and Efficiency

With its servo mechanism, the press achieves high-speed servo press performance, reducing cycle times while maintaining part quality.

Energy efficiency is another crucial advantage. Unlike traditional hydraulic presses that continuously consume energy, the servo system draws power only when required, aligning with modern manufacturing demands for energy-efficient injection molding and sustainable production practices.

Low Maintenance and Reliability

The design emphasizes durability and ease of maintenance. Servo motors, coupled with intelligent monitoring, reduce mechanical wear and extend machine lifespan. Predictive maintenance features align with the concept of a low-maintenance molding press, minimizing downtime and maximizing productivity.

Intelligent Process Monitoring

Advanced sensors continuously track mold temperature, resin flow rate, and clamping force. The system’s control software processes this data to optimize each production cycle, ensuring consistent part quality and reducing material waste. By leveraging plastic injection molding optimization, manufacturers can fine-tune operations for different resin types, fiber preforms, and mold geometries.

Versatile Industrial Applications

The flexibility of the HP-RTM servo molding press allows it to handle a wide range of composite parts, from small automotive panels to large aerospace components. Industrial servo press applications benefit from reduced cycle times, lower scrap rates, and precise control over mechanical properties.

Product Technical Parameters Table

Application Areas and Market Value

The HP-RTM servo molding press has emerged as a versatile solution across multiple industries that demand high-performance composite parts.

Aerospace Industry

Components such as structural panels, interior fittings, and lightweight frames require stringent quality standards. The high-precision servo molding press for plastic components ensures consistent dimensional accuracy and fiber alignment.

Automotive Lightweighting

Automotive manufacturers increasingly rely on composite parts. The automated servo molding press with intelligent control system allows rapid adaptation to different part designs and high-volume production demands.

Renewable Energy Components

Wind turbine blades and similar structures demand large, high-strength parts. The low-maintenance servo hydraulic molding press for industrial use provides reliability and precise resin flow control.

High-Performance Sporting Goods

Equipment such as racing bicycles and racquets requires consistent fiber orientation. The high-speed servo molding press for mass production ensures repeatable performance characteristics.

Application Scenarios Table

Production Optimization and Efficiency Enhancement

Optimizing Injection Parameters

The high-speed servo press allows precise adjustment of injection velocity, pressure, and mold filling profiles, implementing plastic injection molding optimization strategies to maximize quality and minimize scrap.

Reducing Cycle Time

Servo-driven automation reduces mold opening/closing times and curing cycles, increasing throughput for medium- to high-volume production.

Minimizing Material Waste

The automated servo molding press with intelligent control system adjusts parameters dynamically to ensure complete mold filling while reducing excess material usage.

Predictive Maintenance and Reliability

Predictive monitoring supports low-maintenance molding press operations, minimizing downtime and extending machine lifespan.

Flexibility Across Industrial Applications

The system maintains precision molding technology and repeatable quality across diverse parts and materials.

Efficiency Metrics Table

Technology Comparison and Market Trends

• Vs. Traditional Hydraulic Presses: Dynamic servo control improves cycle time, energy efficiency, and reduces mechanical stress.
• Vs. All-Electric Presses: Combines precision with high clamping force and adaptability for large/complex parts.
• Industry 4.0 Alignment: MES integration enables predictive maintenance, adaptive control, and automated molding press solutions.

Competitive Advantages: High repeatability, reduced material waste, lower maintenance, and flexibility for complex parts.

Industry Case Studies and Application Examples

Application Scenarios Table

Conclusion and Outlook

The HP-RTM servo molding press integrates servo-driven precision, intelligent automation, and high-speed production, delivering consistent quality, operational efficiency, and energy savings. Across aerospace, automotive, renewable energy, and sporting goods, it supports industrial servo press applications, reduces scrap, and enhances productivity.
